Many devices today rely on different video connectors to share images and sound. People often see hdmi ports on TVs, game consoles, and computers. Some laptops use usb type-c for video output, making it easy to connect to monitors. Usb type-c cables can carry both video and power. Usb type-c gives users a single solution for charging and video. Usb type-c also supports high-definition displays. Usb type-c works well with new tablets and smartphones. Usb type-c allows fast data transfers. Usb type-c can replace older connectors. Usb type-c is reversible, which means users do not worry about plug direction. Usb type-c supports many adapters for hdmi or displayport. Usb type-c has become a standard in many modern devices. Usb type-c offers flexibility for different setups. Usb type-c provides a future-ready connection. Usb type-c helps users reduce cable clutter. Usb type-c improves device compatibility. Usb type-c is more reliable than older ports. Usb type-c works with various accessories. Usb type-c is essential for many new computers. Usb type-c supports multiple screens. Usb type-c can connect to projectors easily. Usb type-c is part of many common video connectors. Choosing the right video connectors ensures smooth performance and clear images.

Video Connectors Overview

What Are Video Connectors?

Video connectors serve as the link between devices and displays. They allow signals to travel from a computer, game console, or media player to a monitor, TV, or projector. Each connector type has a unique design and supports different signal types. Some connectors, like HDMI and DisplayPort, carry both video and audio. Others, such as DVI-I, can transmit both digital and analog signals. The function of these connectors is to ensure clear images and sound reach the display.

The table below shows some technical details for connectors that support both digital and analog signals:

Some video connectors, like DVI-I, use special pin layouts to support both digital and analog signals. This design allows users to connect older VGA monitors to newer devices.

Why They Matter

Understanding video connectors helps users choose the right video cable types for their devices. Different video connection types support different resolutions and features. For example, HDMI 2.1b supports 8K video at 60Hz and 4K at 120Hz. DisplayPort also supports high resolutions and can connect several displays at once. USB connectors, especially USB-C, now carry video, data, and power, making them very useful for modern setups.

Tip: Always check the ports on your device before buying a cable or adapter. This step prevents problems with compatibility and performance.

Choosing the correct connector affects the quality of the video and display. Some connectors, like VGA, only support analog signals and lower resolutions. Others, such as DisplayPort and HDMI, support digital signals, higher resolutions, and audio. USB connectors add even more flexibility by supporting video, data, and charging in one cable.

• Users should know:

• Not all video connectors support audio.

• Some connectors, like DVI-I, offer backward compatibility with older displays.

• DisplayPort and HDMI often work with adapters, making them compatible with many devices.

• USB connectors, especially USB-C, have become standard for many laptops and tablets.

Selecting the right connector ensures the display shows the best possible image and sound. It also helps users avoid issues with device compatibility and performance.

HDMI and DisplayPort

HDMI Features

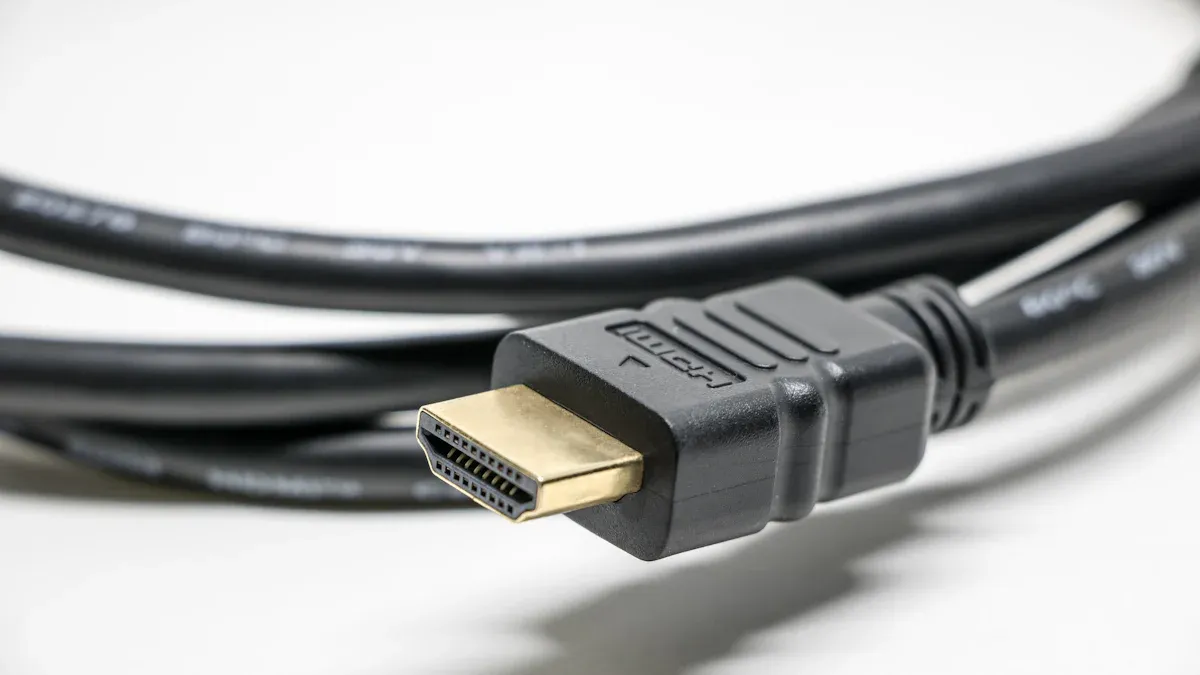

HDMI, or high-definition multimedia interface, stands as the most popular mainstream video interface in homes and offices. This connector supports both high-definition video and audio in a single cable. Since its introduction, HDMI has improved from 5 Gbps in early versions to 48 Gbps in HDMI 2.1. This increase allows HDMI to handle 4K at 120Hz and 8K at 60Hz, making it ideal for high-resolution video and high definition displays. HDMI supports uncompressed digital audio and video, which means users get clear sound and sharp images. Many devices, such as TVs, gaming consoles, and computers, use HDMI. A monitor with hdmi port can connect to a wide range of devices, including DVD players and virtual reality headsets.

The table below shows how HDMI versions support different resolutions:

HDMI uses transition-minimized differential signaling to keep the video signal strong. It also supports content protection, which helps prevent copying of digital content. Over 14 billion HDMI devices have shipped worldwide, showing its role as a mainstream video interface. HDMI cables also support features like ARC and eARC, which allow audio to travel back from the display to a sound system.

Tip: HDMI cables work best at lengths under 30 feet. Longer cables may lose signal quality.

DisplayPort Features

DisplayPort is another mainstream video interface that many computers and monitors use. This connector supports high definition and high-resolution video, making it popular for gaming and professional work. DisplayPort 1.4 can handle 8K at 60Hz and 4K at 240Hz, thanks to its high bandwidth and Display Stream Compression. DisplayPort 2.1 increases bandwidth up to 80 Gbps, which supports even higher resolutions and refresh rates.

The table below compares DisplayPort versions:

DisplayPort video connector supports multiple displays from one port using Multi-Stream Transport. This feature helps users set up several monitors for work or gaming. DisplayPort video connector also supports up to 32 audio channels, which is useful for advanced sound systems. Many laptops and tablets use Mini DisplayPort, a smaller version that fits compact devices but offers the same high definition and high-resolution video support.

DisplayPort often appears in high-performance PCs and professional displays. Its locking connector keeps cables secure, which is important in busy workspaces.

Note: DisplayPort and HDMI both support adapters, so users can connect to different types of displays or projectors.

USB-C and Other Digital Video Input Types

USB-C Video Capabilities

USB type-c has changed how people connect devices for video, data, and power. Many new laptops, tablets, and smartphones use usb type-c as a main port. This connector supports video input types like hdmi and displayport through Alternate Mode. Usb type-c can send video signals to monitors, projectors, and TVs. It also allows fast data transfer and power delivery up to 100W. Usb type-c cables often include E-Marker chips for safe power management. Users can connect a monitor with dvi port to a usb type-c device by using the right adapter.

The table below shows how usb type-c supports different functions:

Usb-c and usb type-c both support high-definition video output. Usb type-c can carry hdmi signals, making it easy to connect to many displays. Usb type-c also works with mhl, which lets users connect mobile devices to larger screens. Usb type-c provides a single cable for video, data, and charging, reducing clutter and improving device compatibility. Usb type-c has become a standard among current video input options.

Tip: Usb type-c adapters can help connect to older video input connector types, such as dvi or vga, when needed.

DVI and Digital Monitor Ports

Dvi stands as one of the earlier digital video input connector types. Many older monitors and graphics cards use dvi. A monitor with dvi port can display clear digital images, but dvi does not support audio. Users must use a separate cable for sound. Dvi comes in several types, including dvi-d (digital only), dvi-a (analog only), and dvi-i (integrated digital and analog). Dvi supports resolutions up to 1920x1200 at 60Hz for single-link and up to 2560x1600 at 60Hz for dual-link.

Dvi has some limitations compared to newer ports like hdmi and displayport:

• Dvi does not support audio transmission.

• The connector is large and bulky.

• Dvi usually supports only 8-bit RGB signals, limiting color depth.

• Maximum bandwidth restricts dvi to lower resolutions than hdmi or displayport.

• Dvi cables use screws, making frequent connections less convenient.

• Hdmi and displayport offer smaller connectors and higher resolutions.

• Dvi lacks advanced features like multi-stream transport and adaptive sync.

• Dvi does not support mhl.

Despite these limits, dvi remains useful for connecting older monitors or projectors. Many modern devices now favor usb type-c, hdmi, or displayport for better performance and more features. Usb type-c and mhl have made it easier to connect a wide range of devices, supporting both new and legacy equipment.

Analog Video Connection Types

VGA and Legacy Ports

VGA stands for Video Graphics Array. Many older computers and monitors use the vga connector. This port has a blue color and 15 pins in three rows. People often see vga on projectors and some older TVs. VGA sends analog video signals. It does not carry sound. Users need a separate cable for audio. VGA supports different screen sizes, but the image can look blurry on modern high-resolution displays. The vga connector works best with resolutions up to 1920x1080, but the quality drops at higher settings.

S-Video is another legacy port. It stands for Separate Video. S-Video uses a round connector with four small pins. This port splits the video signal into two parts, which helps improve picture quality over composite video. S-Video was common on DVD players, older game consoles, and some TVs. Like vga, S-Video only carries video, not audio.

Many schools and offices still use vga because it works with older projectors and monitors. Some adapters let users connect vga to newer devices, but the image quality may not match digital connections.

Note: VGA and S-Video do not support high-definition video or audio. They remain useful for legacy equipment and simple setups.

Component and Composite Video

Component and composite video connectors appear on many older TVs and DVD players. Composite video uses a single yellow RCA plug. This connector sends all video information through one cable. The result is a simple setup, but the image quality is low. Users may notice color bleeding and fuzzy details, especially on large screens.

Component video uses three separate cables, usually colored red, green, and blue. Each cable carries part of the video signal. This design gives better color accuracy and sharper images than composite video. Component video supports higher resolutions, making it a better choice for older HDTVs.

When comparing the two, composite video offers easy connections and low cost. However, the picture often looks dull and less clear. Component video provides much better clarity and color. On legacy equipment, users see a clear difference between the two. Component video works well for anyone who wants improved video quality from older devices.

Tip: For the best picture on older TVs, choose component video over composite video when possible.

Comparing Different Types of Monitor Ports

Key Differences

People often see many different types of monitor ports on computers, TVs, and other devices. Each port has unique features that affect how well it works for video and audio. Some ports use digital signals, while others use analog signals. Digital ports, such as HDMI, DisplayPort, and USB type-c, send clear images and sound. Analog ports, like VGA, can show images but do not support audio and may look blurry on modern screens.

The table below shows the main differences between popular monitor ports:

VGA and dvi can connect to older monitors, but they do not support the latest features. HDMI and DisplayPort work well with high-definition displays and carry both video and audio. USB type-c stands out because it can send video, audio, data, and power through one cable. USB type-c also supports adapters for other ports, making it flexible for many setups.

Note: Not every usb port supports video. Users should check if their usb type-c port has video output before buying cables or adapters.

Best-Use Scenarios

Choosing the right monitor port depends on the user’s needs and the devices they own. Each port fits certain situations better than others.

• Home Entertainment:
  HDMI works best for TVs, streaming devices, and game consoles. It supports high resolutions, fast refresh rates, and advanced audio. Most living rooms use HDMI for easy setup and great picture quality.

• Office and Productivity:
  USB type-c and DisplayPort help users connect laptops to monitors and docking stations. USB type-c can charge devices, transfer data, and send video at the same time. DisplayPort supports multiple monitors from one port, which helps with multitasking.

• Gaming:
  DisplayPort gives gamers high refresh rates and sharp images. It supports up to 240Hz at 4K and even higher at lower resolutions. HDMI 2.1 also works well for console gaming, offering 4K at 120Hz and advanced audio.

• Industrial and Legacy Equipment:
  VGA and dvi remain useful for older projectors, monitors, and specialized machines. Many factories and schools still use these ports because their equipment has not changed. USB adapters can help connect new devices to these older ports.

The table below compares HDMI 2.1 and DisplayPort 1.4 for common uses:
