DW01A Battery Protection IC: Complete Guide to Lithium Battery Safety

FREE-SKY (HK) ELECTRONICS CO.,LIMITED / 05-19 19:19

Lithium-ion and lithium-polymer batteries need proper protection because overcharging, deep discharging, overcurrent, and short circuits can damage the battery or make the device unsafe. This is where the DW01A Battery Protection IC becomes useful. In this article, we will discuss the DW01A pinout, key specifications, working principle, application circuit, timing behavior, comparisons with other battery protection ICs, and important design tips.

Catalog

1. DW01A Battery Protection IC

2. DW01A Pinout and Pin Functions

3. Technical Specifications of DW01A

4. How the DW01A Battery Protection IC Works

5. DW01A Typical Application Circuit

6. Timing Diagram of DW01A

7. DW01A vs Other Battery Protection ICs

8. Important Design Considerations When Using DW01A

9. DW01A Applications and Use Cases

10. Conclusion

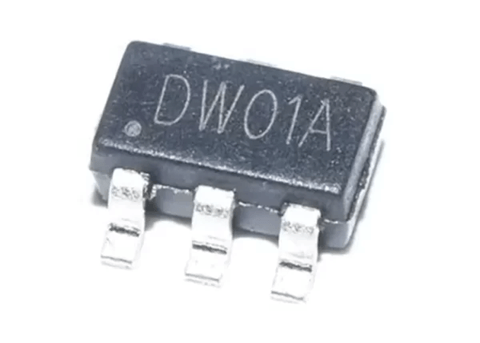

DW01A Battery Protection IC

The FS312F-G

AP9101	S8254A
Main Function	Single-cell Li-ion/Li-Po protection	Single-cell Li-ion protection	Battery protection with integrated MOSFET options	High-accuracy battery protection
Battery Support	1-Cell Li-ion/Li-Po	1-Cell Li-ion/Li-Po	1-Cell Li-ion/Li-Po	1-Cell Li-ion/Li-Po
Overcharge Protection	Yes	Yes	Yes	Yes
Overdischarge Protection	Yes	Yes	Yes	Yes
Overcurrent Protection	Yes	Yes	Yes	Yes
Short-Circuit Protection	Yes	Yes	Yes	Yes
External MOSFET Required	Yes	Yes	Some versions no	Yes
Typical Overcharge Voltage	4.30V	4.30V	4.28V	4.30V
Typical Overdischarge Voltage	2.50V	2.40V	2.50V	2.50V
Current Consumption	Very Low (~3µA)	Low	Low	Very Low
Protection Accuracy	Good	Standard	Good	High Precision
Internal Delay Circuit	Yes	Yes	Yes	Yes
Package Type	SOT-23-6	SOT-23-6	SOT-23-6 / DFN	SOT-23-5/6
Circuit Complexity	Simple	Simple	Moderate	Moderate
Cost	Very Low	Very Low	Medium	Higher
Common Use	TP4056 boards, power banks	Low-cost protection boards	Compact battery modules	High-reliability battery packs
Best For	General battery protection	Budget battery circuits	Compact designs	Precision battery protection systems

Important Design Considerations When Using DW01A

• Use the DW01A only for single-cell lithium-ion or lithium-polymer batteries.

• Select compatible external MOSFETs with low ON resistance to reduce heat and power loss.

• Ensure the MOSFET current rating is higher than the maximum load current.

• Keep PCB traces short and wide for better current handling and reduced voltage drop.

• Place the filtering capacitor close to the VCC and GND pins for stable voltage sensing.

• Avoid excessive noise on the CS and VM sensing lines to prevent false triggering.

• Verify that the charger voltage matches the battery charging requirements.

• Consider battery discharge current when choosing protection thresholds.

• Do not exceed the IC operating voltage and temperature limits.

• Ensure proper thermal management for high-current applications.

• Prevent reverse battery connection to avoid IC and MOSFET damage.

• Test overcharge, overdischarge, and overcurrent protection during circuit validation.

• Avoid using damaged or low-quality lithium batteries with the protection circuit.

• Follow safe lithium battery handling and PCB isolation practices.

• Use high-quality PCB layout design to improve protection stability and reliability.

DW01A Applications and Use Cases

Power Banks

The DW01A is widely used in power bank battery protection boards to prevent overcharge, deep discharge, and short-circuit damage in 18650 lithium battery cells.

TP4056 Charging Modules

Many TP4056 charging boards combine the DW01A with dual MOSFETs to add battery protection functions during charging and discharging.

Bluetooth Devices

Portable Bluetooth speakers, earbuds, and wireless audio devices use the DW01A to improve lithium battery safety and reliability.

Rechargeable LED Products

Rechargeable flashlights, emergency lamps, and LED lighting products use the DW01A to protect small lithium battery packs.

Portable Consumer Electronics

The IC is commonly used in compact battery-powered electronics that require low-power battery protection circuitry.

DIY Lithium Battery Projects

The DW01A is popular in DIY electronics and battery pack projects because of its simple external circuit and low cost.

IoT and Embedded Systems

Low-power IoT devices and embedded systems use the DW01A to help maintain safe battery operation during continuous use.

Small Rechargeable Gadgets

Portable fans, mini tools, handheld testers, and small USB rechargeable devices often include DW01A-based protection circuits.

Single-Cell Lithium Battery Packs

The DW01A is mainly designed for single-cell lithium-ion and lithium-polymer battery protection systems.

Conclusion

The DW01A battery IC is a low-cost solution for protecting single-cell lithium-ion and lithium-polymer batteries. It helps prevent common battery problems such as overcharge, overdischarge, overcurrent, and short-circuit conditions. With its small SOT-23-6 package, low power consumption, internal delay control, and simple external circuit design, it is easy to use in many compact battery-powered products.
