Single N-Channel 20 V 27 mOhm 8.9 nC HEXFET® Power Mosfet - SOT-23

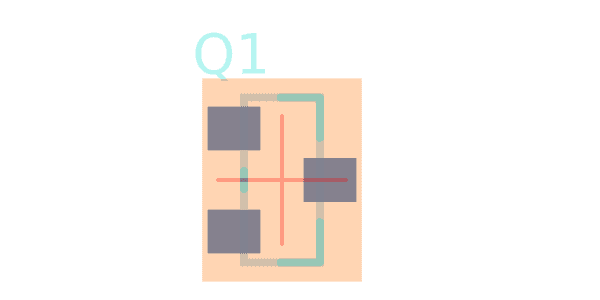

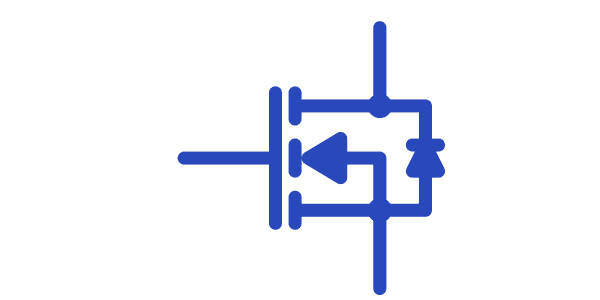

Download Infineon IRLML6244TRPBF symbol, SOT-23 footprint, and 3D STEP models in Altium Designer, EAGLE, KiCad, and OrCAD.
Infineon IRLML6244TRPBF technical specifications, attributes, and parameters.
| Physical | |
|---|---|
| Case/Package | SOT-23 |
| Mount | Surface Mount |
| Number of Pins | 3 |
| Technical | |
| Continuous Drain Current (ID) | 6.3 A |
| Drain to Source Breakdown Voltage | 20 V |
| Drain to Source Resistance | 21 mΩ |
| Drain to Source Voltage (Vdss) | 20 V |
| Element Configuration | Single |
| Fall Time | 12 ns |
| Gate to Source Voltage (Vgs) | 12 V |
| Input Capacitance | 700 pF |
| Max Junction Temperature (Tj) | 150 °C |
| Max Operating Temperature | 150 °C |
| Max Power Dissipation | 1.3 W |
| Manufacturer Package Identifier | Micro3 |
| Min Operating Temperature | -55 °C |
| Nominal Vgs | 12 V |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Packaging | Cut Tape |
| Power Dissipation | 1.3 W |
| Rds On Max | 21 mΩ |
| Recovery Time | 18 ns |
| Resistance | 27 MΩ |
| Rise Time | 7.5 ns |
| Schedule B | 8541290080 |
| Threshold Voltage | 900 mV |
| Turn-Off Delay Time | 19 ns |
| Turn-On Delay Time | 4.9 ns |
| Dimensions | |
| Height | 1.02 mm |
| Length | 3.04 mm |
| Width | 1.4 mm |
| Compliance | |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| RoHS | Compliant |
The following parts have similar specifications to Infineon IRLML6244TRPBF.
Price @ 1,000
Authorized Distributors
16
Mount
Surface Mount
Case/Package
SOT-23
Drain to Source Voltage (Vdss)
20 V
Continuous Drain Current (ID)
6.3 A
Threshold Voltage
900 mV
Rds On Max
21 mΩ
Gate to Source Voltage (Vgs)
12 V
Power Dissipation
1.3 W
Input Capacitance
700 pF
Price @ 1,000
Authorized Distributors
7
Mount
Surface Mount
Case/Package
TO-236-3
Drain to Source Voltage (Vdss)
20 V
Continuous Drain Current (ID)
6.5 A
Threshold Voltage
-
Rds On Max
25 mΩ
Gate to Source Voltage (Vgs)
12 V
Power Dissipation
1.3 W
Input Capacitance
151 pF
Price @ 1,000
Authorized Distributors
18
Mount
Surface Mount
Case/Package
SOT-23
Drain to Source Voltage (Vdss)
20 V
Continuous Drain Current (ID)
4.3 A
Threshold Voltage
-1.1 V
Rds On Max
54 mΩ
Gate to Source Voltage (Vgs)
12 V
Power Dissipation
1.3 W
Input Capacitance
570 pF
Price @ 1,000
Authorized Distributors
17
Mount
Surface Mount
Case/Package
SOT-23
Drain to Source Voltage (Vdss)
-20 V
Continuous Drain Current (ID)
-3.7 A
Threshold Voltage
-550 mV
Rds On Max
65 mΩ
Gate to Source Voltage (Vgs)
12 V
Power Dissipation
1.3 W
Input Capacitance
633 pF
Price @ 1,000
Authorized Distributors
4
Mount
Surface Mount
Case/Package
SOT-23
Drain to Source Voltage (Vdss)
-20 V
Continuous Drain Current (ID)
-3.7 A
Threshold Voltage
-
Rds On Max
65 mΩ
Gate to Source Voltage (Vgs)
12 V
Power Dissipation
1.3 W
Input Capacitance
633 pF
Price @ 1,000
Authorized Distributors
10
Mount
Surface Mount
Case/Package
TO-236-3
Drain to Source Voltage (Vdss)
20 V
Continuous Drain Current (ID)
4.6 A
Threshold Voltage
-
Rds On Max
40 mΩ
Gate to Source Voltage (Vgs)
12 V
Power Dissipation
1.25 W
Input Capacitance
820 pF
Price @ 1,000
Authorized Distributors
12
Mount
Surface Mount
Case/Package
TO-236-3
Drain to Source Voltage (Vdss)
20 V
Continuous Drain Current (ID)
2 A
Threshold Voltage
1.05 V
Rds On Max
80 mΩ
Gate to Source Voltage (Vgs)
12 V
Power Dissipation
500 mW
Input Capacitance
635 pF
Download datasheets and manufacturer documentation for Infineon IRLML6244TRPBF.
| Newark | ||
|---|---|---|
| Datasheet | 10 pages | 8 years ago |
| Datasheet | 10 pages | 10 years ago |
| Allied Electronics & Automation | ||
| Datasheet | 12 pages | 15 years ago |
| Upverter | ||
| Technical Drawing | ||
| iiiC | ||
| Datasheet | 10 pages | 8 years ago |
| Compliance Statements | ||
| Conflict Mineral Statement | ||
| Reach Statement | 6 pages | 6 years ago |
| Rohs Statement | 1 page | 6 years ago |
Descriptions of Infineon IRLML6244TRPBF provided by its distributors.
This part may be known by these alternate part numbers:
IRLML6244TRPBF.
